Span Width | Bay Distance | Side Height | Ridge Height | Main Profile | ||||
5m | 5m | 2.6m | 3.5m | 122x68x3mm | ||||
6m | 5m | 2.6m | 3.7m | 122x68x3mm | ||||
10m | 5m | 2.6m | 4.4m | 122x68x3mm | ||||
15m | 5m | 3m | 5.4m | 122x68x3mm | ||||
20m | 5m | 4m | 7.2m | 203x109x4mm | ||||
40m | 5m | 5m | 10.3m | 300x125x4mm | ||||
The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available. |

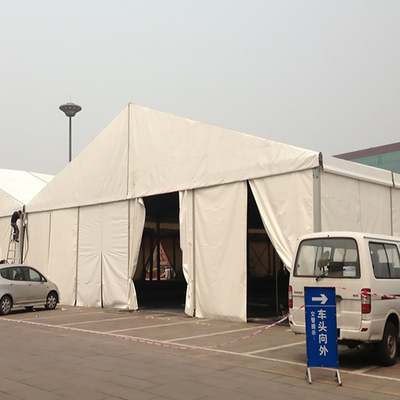

Item | Wedding tent |
Frame structure | Aluminum alloy 6061-T6 / 6N01-T6 |
Roof Cover Material | 850g/sqm double PVC- coated polyester textile, black-out |
Side Cover Material | 650g/sqm double PVC- coated polyester textile |
Connector | Q235 galvanized steel |
Maximum wind loading | 100km/h |
Color | White, others available |
SPECIFICATIONS | ||||||||||
Item | Span Width | Bay Distance | Eave Height | Ridge | Main Profile | |||||
PTS-06 | 3m-8m | 3m or 5m | 48*84*3mm | 2.6m-3m | 84*48*3mm | |||||
PTS-08 | 3m-12m | 3m | 68*122*3mm | 2.6m-4m | 84*48*3mm | |||||
PTS-10 | 10m-20m | 5m | 88*166*3mm | 3m-4m | 84*48*3mm | |||||
PTS-12 | 10m-25m | 5m | 112*203*3mm | 3m-6m | 122*68*3mm | |||||
PTS-16 | 30m | 5m | 120*253*4mm | 3m-6m | 166*88*3mm |
Product Performance |
1) High security . |
2) Heavy-duty and stable structure . |
3) Elegant and magnificent appearance . |
4) TUV rheinland ISO9001:2008 certificated . |
5) No interior poles structure design ,to give 100% use of interior space . |
6) Easy to assemble and demount .Convenient to transport and storage . |
7) Wide range of applications; Widely used for outdoor party ,wedding ,celebration ,festival ,fashion show exhibition , fair ,trade show ,business promotion ,product show ,car showrooms ,conference ,ceremony ,garden centres swimming pool cover ,cafe room,temporary warehouse or workshop ,etc . |
